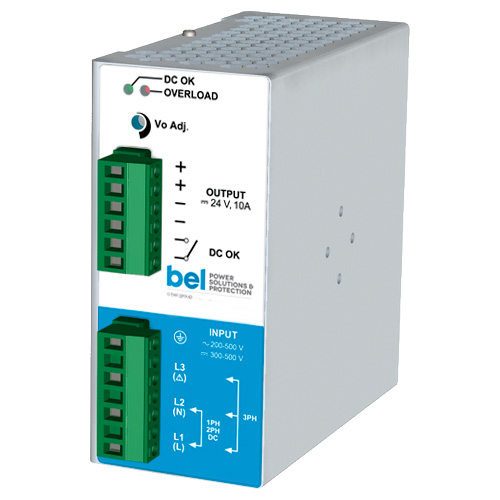

LDW240-24
Share
Email Form
Datasheets and Drawings
LDW240 Data Sheet
Technical Documents
| Power (W) | 240 |
| Voltage Input (VAC) | 187-550 |
| Output Voltage (VDC) | 24 |
| Output Current (A) | 10 |
| Operating Temperature (°C) | -40 to 70 |
| Dimensions LxWxH (mm) | 54 x 110 x 115 |
| Mounting Type | DIN Rail |
| Cooling Type | Convection |
| Isolation | Isolated |
| Auxiliary functions and options | - |
| Number of Outputs | 1 |
| Vout 1 (VDC) | 24 |
| Iout 1 (A) | 10 |
