SPSPFF3-01
SPSPFF3-01

DATASHEET
OUT OF STOCK

SPSPFF3-01

Share

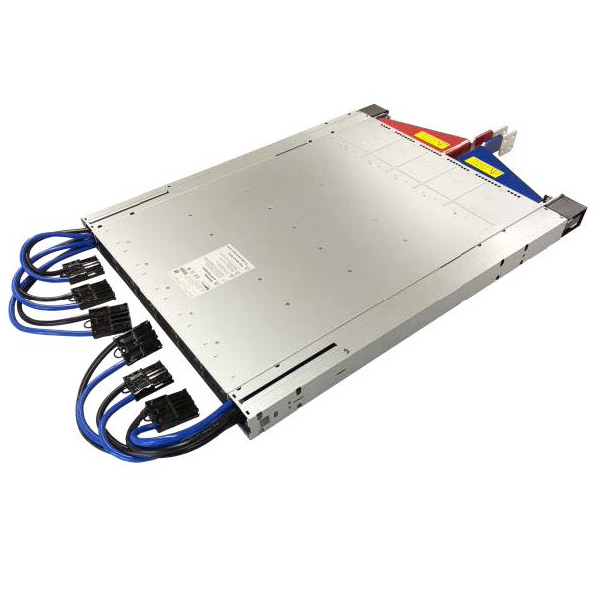

DC-DC Power Shelf | Power 14400W (8700W) | Two -40 to -72 VDC inputs (nominal -48 VDC) | 1 Set of Output Blade for +12.5 VDC output | Offset Bus Bar

Email Form

DESCRIPTION

DC-DC Power Shelf | Power 14400W (8700W) | Two -40 to -72 VDC inputs (nominal -48 VDC) | 1 Set of Output Blade for +12.5 VDC output | Offset Bus Bar

DOCUMENTS

SUPPORT

Email Form

REQUEST QUOTE





Max. Power (W) 14400
Power 3+3 Redundancy (W) 8700
Power 5+1 Redundancy (W) 14400
Input Voltage (VDC) -40 to -72
Output Voltage (VDC) 12
Max. Output Current (A) 1171
No. of Output Busbars 1 (Offset)
Redundancy 3+3/5+1
Operating Temperature (°C) 0 to 55
Dimensions LxWxH (mm) 650 x 534.5 x 46.5
NAC Included NO
RoHS Compliant Yes
